8 Port Industrial Gigabit POE Switch For Solar Installs, 12V–48V DC Input, POE+ 30W Per Port, 90W-120W Total

• A hardened industrial POE switch designed for the extreme temperature environments of solar trailers and solar installs. This robust switch can withstand temperature variances of -40°-158° Farenheit

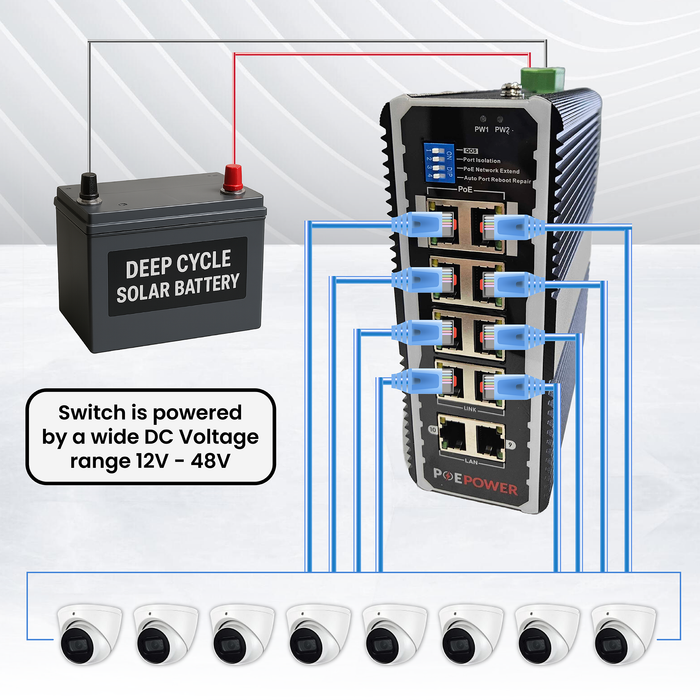

• Wide voltage input range of 12V-48V DC allows the switch to be connected to most solar battery types and configurations. The switch then internally inverts the power to the proper standard active POE output to power most all types of IP Cameras and other POE devices.
• IEEE802.3af/at active POE output on all 8 POE ports. Up to 30 watt output capability on each port. If the switch is powered by 12V DC, total output budget will be 90 watts. If the switch is powered by 24V DC or higher, the total output budget will be 120 watts

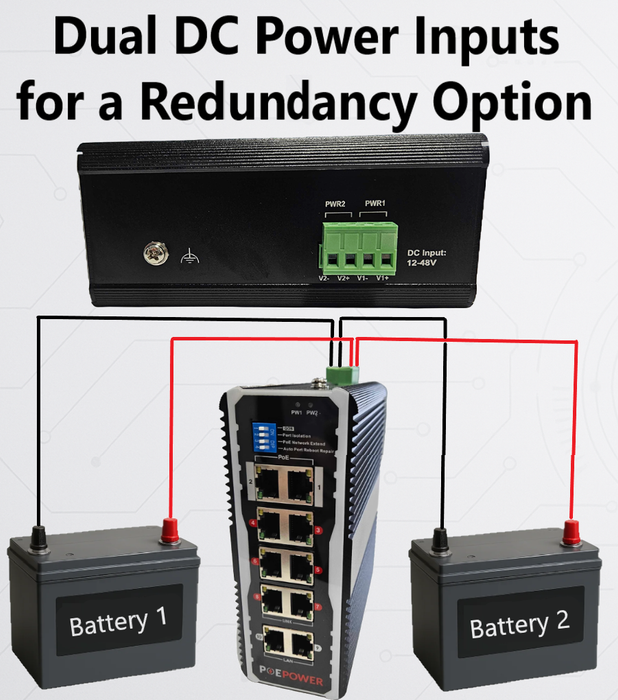

• 2 Power Inputs for Redundancy. If one of your battery fails, no problem, the switch has 2 available power inputs for backup and redundancy.

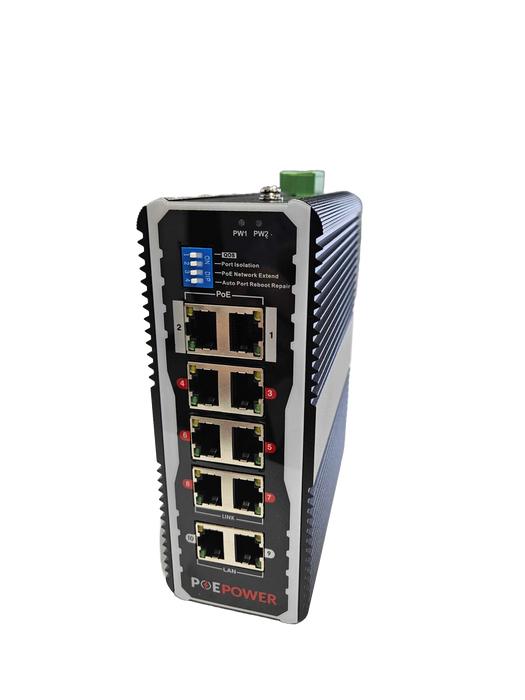

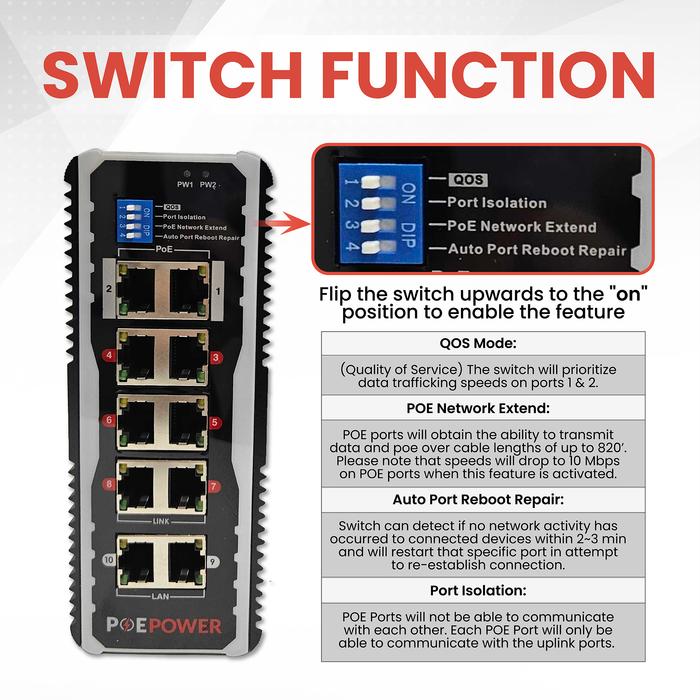

• 4 Robust Optional Features that are available through dip switches on the front
  • QOS: (Quality of Service) The switch will prioritize traffic on ports 1&2
  • POE Network Extend: Ports 1-8 will obtain the ability to transmit data and POE over cable lengths up to 820'. Please note that speeds will drop to 10 Mbps on ports 1-8 when this feature is activated
  • Auto Port Reboot Repair: Switch can detect if no network activity has occurred to connected devices within 2-3 minutes and will restart that specific port in an attempt to re-establish connection
  • Port Isolation: POE Ports will not be able to communicate with each other. Each POE port will only be able to communicate with the uplink ports.

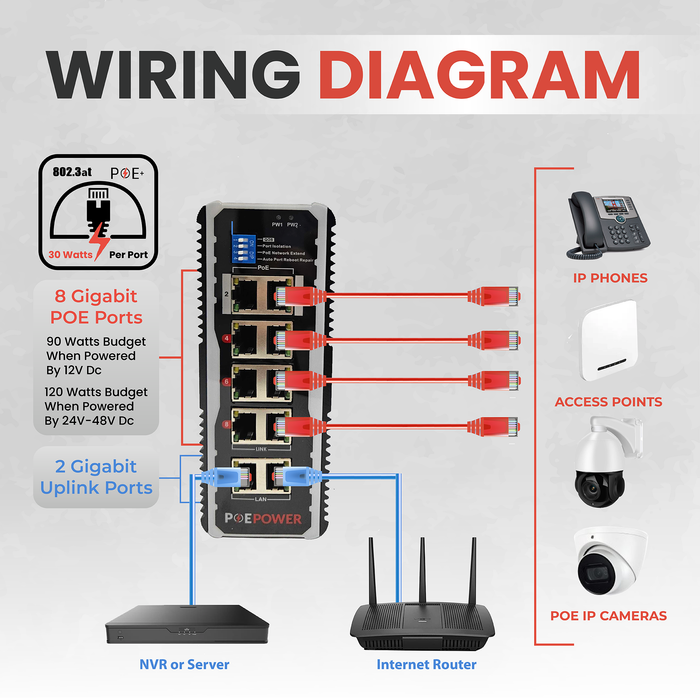

• 8 Total POE ports - 2 Non-POE Uplink Ports. 10 ports total. All ports are 10/100/1000 Gigabit rated. All ports surge protected.
• Great For Solar Use but can also be used in other applications where only DC power is available such as mobile and factory scenarios.

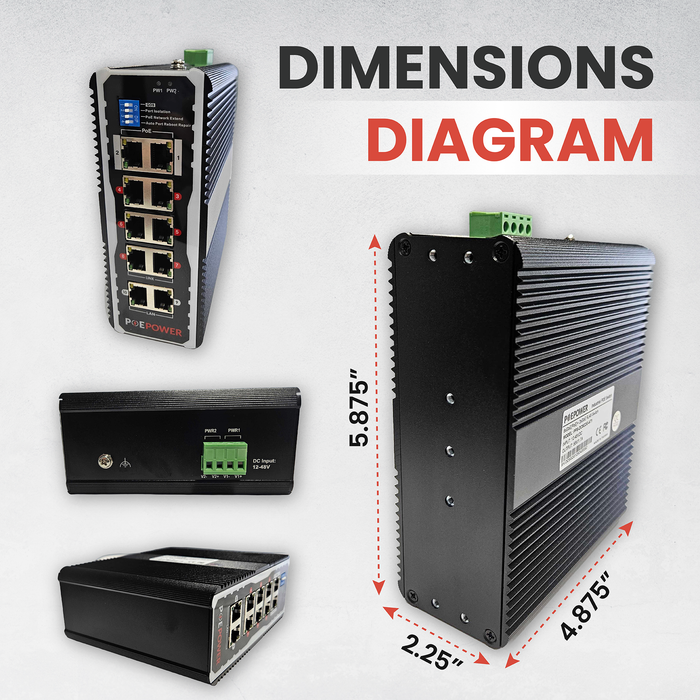

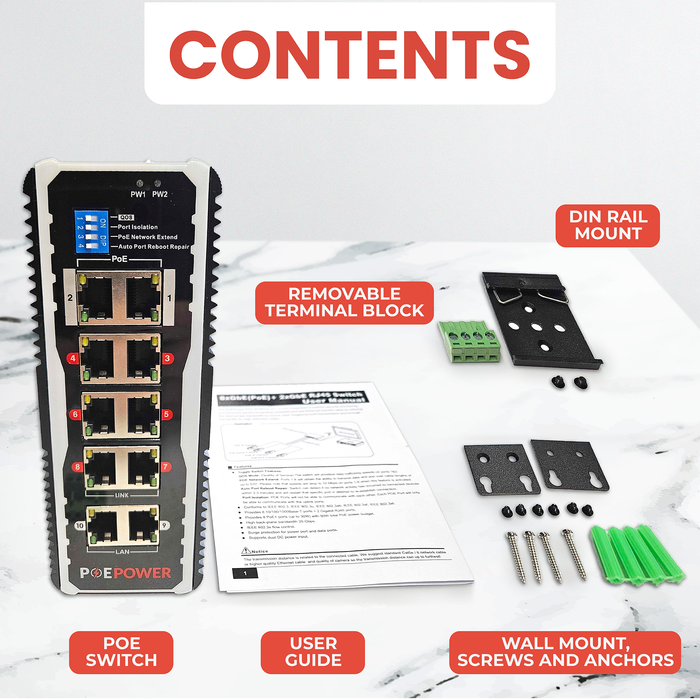

• 3 Year Warranty. TAA Compliant. NDAA Compliant. Din Rail Mount Included. Heavy Duty Metal Construction. 5.875" x 4.875" x 2.25"

Downloads: Spec Sheet
