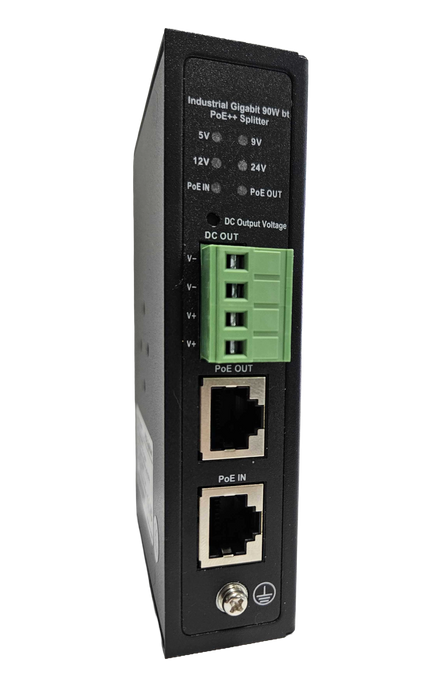

Monitor Masters MM-PS90-BT1 POE Module - Used for Making POE Monitors

Monitor Masters MM-PS90-BT1 POE Module - Used for Making POE Monitors

by IPCamPower
SKU MM-PS90-BT1
$89.99 - $89.99
$89.99
$89.99 - $89.99
$89.99
  • If you are looking to build a POE Powered Monitor using a Monitor Masters Monitor, then you need this.
  • This takes incoming POE and converts it to either 12V DC or 24V DC (Selectable) to power your Monitor Masters Monitor. Monitor Master monitors require either 12V or 24V DC depending on the model.
  • There is an additional DC output on the module that can be used to power other DC powered devices in addition to the monitor. These additional devices can be things like Mini PCs, Decoder Boards, DVRs/NVRs, AV Over IP Receivers, etc
  • The module also has a POE passthrough which allows you to also power additional devices that require POE such as IP Cameras.
  • The total shared output power budget between the POE output and DC outputs is 72 watts which is used to power the monitor and additional accessories
  • The module requires a 90 watt IEEE802.3bt POE ++ POE Switch or Injector.  Sold Seperately
  • The POE Output can also be used to pass through data on Non-POE Devices. The module will intelligently identify if the end device needs POE Power or not. If it detects a non-POE device, the module will only pass through Data.
  • The pass through data rate is Gigabit rated - 10/100/1000
  • 3 Year Warranty. Heavy Duty Metal Case. High Temperature Variance (-40 to 167°F)
