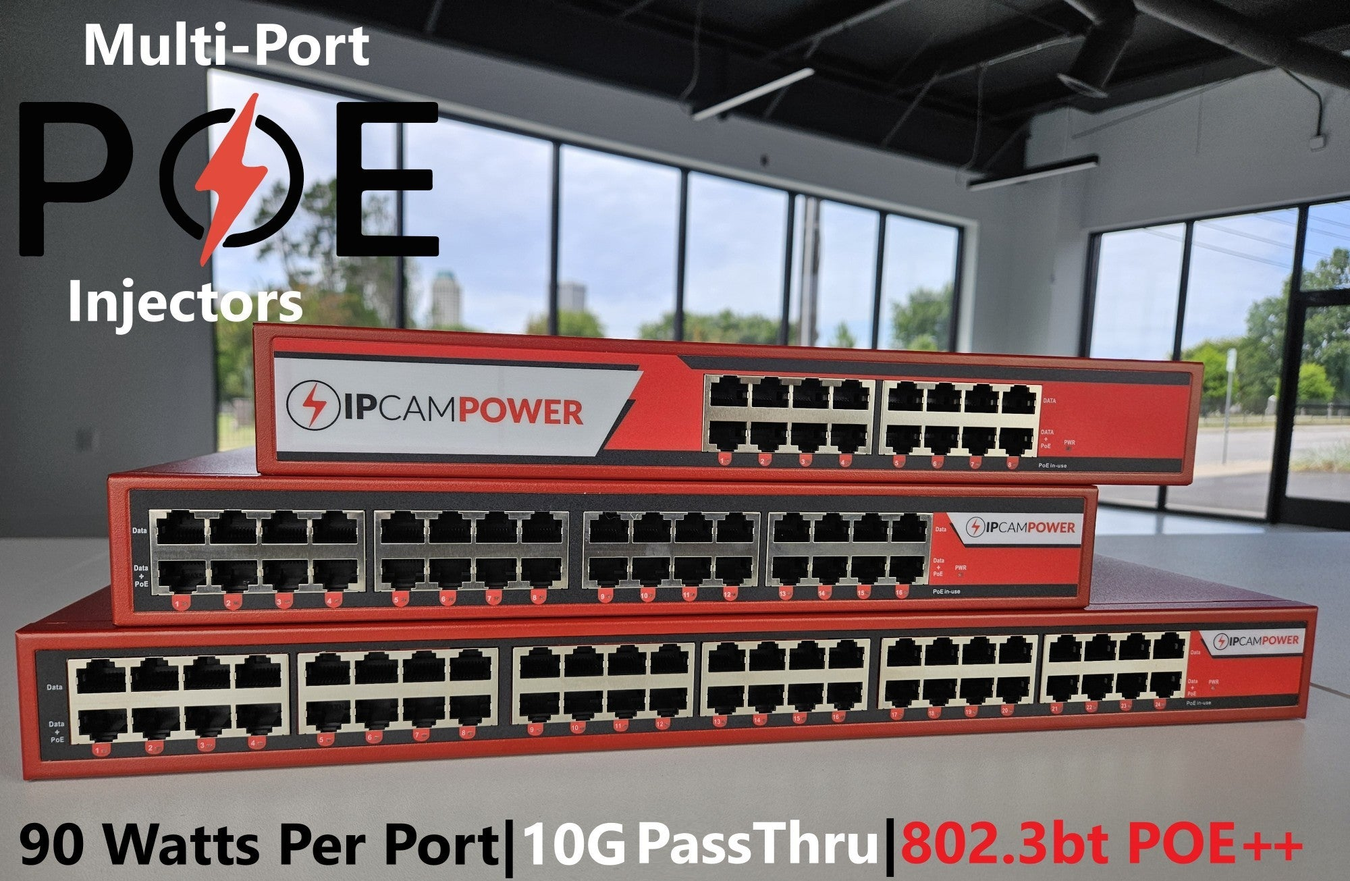

Multi Port POE Injectors

Do you need POE (Power Over Ethernet) but prefer to use your own network switch?

• Do you need to ensure you have adequate POE++ power for your power-hungry devices?
• Do you need ultra-fast bandwidth pass-through to maximize your switch's network speeds?

If you answered yes to any or all of the above questions, then it’s likely that the IPCamPower Multi-Port POE Injector Hubs are exactly what you need.

How Do They Work?

Let’s briefly explain how these simple yet powerful devices work:

• Use these with your favorite non-POE network switch, which essentially turns that switch into a POE-enabled switch.
• They are compatible with all switch brands.
• Install the POE Injector next to your switch, and run short network cables from the switch ports to the injector's Input (Data) ports.
• The injector will pass the data through and supply POE (Power Over Ethernet) to the output ports (Data+POE), delivering power to your connected devices.

Here’s a diagram for a better visual explanation, using the 8-Port Version as an example:

Up to 90 Watts of Power with IEEE802.3bt POE++ Technology

With our injectors, you don’t need to worry about under-powering or over-powering your devices. Our injectors use IEEE802.3bt Class 8 POE Technology, meaning they only deliver the required power that your device needs.

Each port can push up to 90 watts, the most powerful active POE type available. Whether you're powering a large PTZ or AV Broadcast Camera requiring POE++, or a smaller IP Camera or IP Phone needing standard POE, these injectors communicate intelligently with your device, supplying the perfect amount of power without risk of over-powering.

Pass-Through Speeds of up to 10Gbps per Port

You won’t experience network speed bottlenecks with these POE injectors. They support pass-through speeds of up to 10Gbps per port, ensuring you can fully utilize the maximum speeds of nearly all commercially available Ethernet switches.

Whether you need to power a low-bandwidth IP Camera or an AV over IP device that requires 10G speeds, these injector hubs handle most scenarios related to bandwidth pass-through.

Common Use Cases

These injectors are ideal for jobs where you need to power multiple POE devices while continuing to use your standard network switch. However, given their exceptional power and bandwidth capabilities, we've found that they are very popular in the following scenarios:

• Power-hungry IP Cameras (e.g., PTZ and multi-sensor cameras).
• AV over IP devices requiring high 10G bandwidth, such as SDVoE devices.
• AV Broadcast Cameras with high POE requirements.
• Access control devices, including control boards and locking equipment.
• POE lighting.
• POE monitors.

FAQ:

Q: What is the maximum cable run distance from the injector to the POE-powered device?
A: 328 feet. However, this distance may vary if you’re using low-quality cable. Always use solid copper Ethernet cables for the best performance.

Q: Are these managed devices with a web interface or GUI?
A: No, these are unmanaged, plug-and-play injectors. They require no setup and are ready to use right out of the box.

Q: Will these work with my switch?
A: Yes, as long as your switch uses RJ45 Ethernet plugs, which are the most common connection on network switches.

Q: How do I know if these will work with my POE-powered device?
A: These injectors work with any device that supports standard Active POE. However, they may not work with devices requiring passive POE (e.g., some Ubiquiti Access Points). Check your product’s spec sheet for terms like Active POE, IEEE802.3af, IEEE802.3at, or IEEE802.3bt. If you see these terms, our injectors will be compatible with your device.

If you’re unsure, feel free to send us your product model numbers or spec sheets at Sales@IPCamPower.com for confirmation.

Q: Are these injectors in stock?
A: Yes, all products are in stock unless otherwise specified. If an item is out of stock, the “Add to Cart” button will not be visible.

Q: How long will it take to receive my order?
A: Orders typically arrive within 3-5 days. During checkout, you’ll see an estimated shipping time. For urgent next-day delivery, contact us at Sales@IPCamPower.com to arrange expedited shipping.
