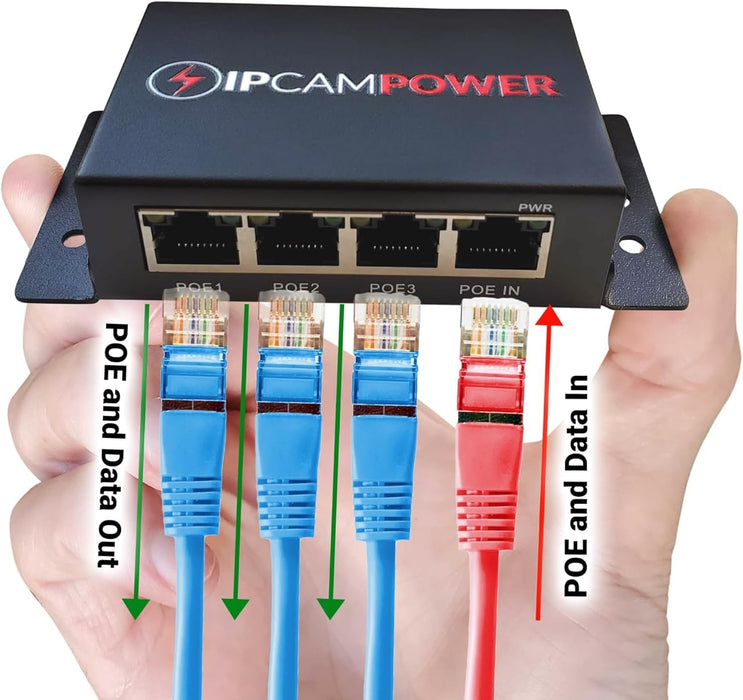

POE Powered 3 Port Switch & Network Cat5 Cat6 Midspan Cable Range Extender Pass Through Repeater for IP Cameras - Gigabit 10/100/1000

• POE POWERED 3 PORT 10/100 UNMANAGED POE SWITCH - This unique switch is powered by incoming POE power from your POE switch or POE injector. It has 1 POE input that passes POE and Data through to the 3 POE Outputs. Since it does not require traditional AC power, this gives the user the ability to install this POE switch anywhere without the need for a nearby power receptacle.
• POE AND DATA CABLE RUN EXTENDER - Not only does this act as a standard POE switch, it also gives you the ability to surpass the limitations of a standard 100 meter cable run. This unit can extend your incoming Data and POE transmission up to an additional 100 meters on all 3 output ports.
• GIGABIT SPEEDS ON ALL PORTS - All 4 Ports utilize 10/100/1000 gigabit speeds for fast and efficient transfer speeds. Whether you are using this for low bandwidth IP Cameras or High bandwidth applications such as PCs, this POE Powered switch gets the job done.
• POWERED BY INCOMING POE - This switch operates best with 30 watts of incoming POE, but can function at reduced capacity with lower wattage. It uses 5W for itself and channels remaining power to the 3 outputs. Compatible with standard POE types (802.3af/at/bt), utilizing max 30W. Output wattage budget is 25W total, shared across 3 ports (up to 25W per port).
• LOW PROFILE AND WALL MOUNTABLE - The unit is small and unassuming and can be conveniently installed on a flat surface or be wall mounted using the included wall mount ears. Size is only 8.25cm Wide (11.35cm Wide with mounts installed) x 5.5cm High x 2.4cm Deep

Downloads: Spec Sheet
