Extreme Power 144 Watt POE to 12V or 24V Converter w/ POE Pass Through 802.3bt, Gigabit POE Power Splitter and Injector Combo

• One of the most powerful POE Power Splitters on the market. By utilizing 2 ethernet runs from the included Dual POE Injector, the splitter is able to provide an unmatched 144 Total Watt Budget output at the splitter.
• Converts incoming POE to a selectable DC Voltage Output of either 12V DC or 24V DC. Additionally, unlike traditional POE splitters, this will also pass through and output POE power. This unique feature allows you to power POE devices such as IP Cameras as well as DC powered devices simultaneously.

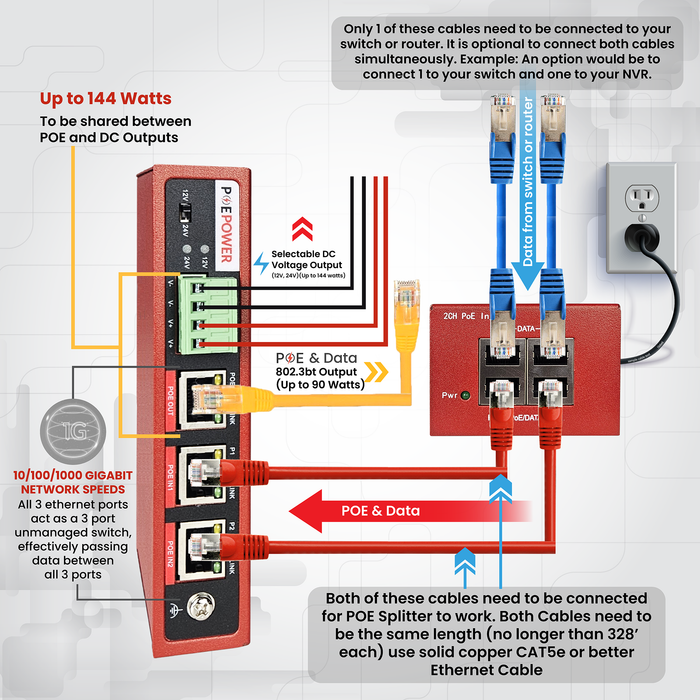

• Requires 2 Ethernet Cable Runs. To achieve maximum power, 2 ethernet cable runs (CAT5e Cable or better) must be ran from the included POE injector to the POE Splitter. Both cable runs must be the same length and not exceed 328' each. The POE Splitter will only work with the included POE injector and will not work on any other POE switches or Injectors.
• 144 Total Watts to be shared between POE output and DC Outputs on the splitter unit. The POE output on the splitter has a maximum output capacity of 90 watts and is IEEE802.3bt Compliant and backwards compatible with IEEE802.3af/at devices. The DC output on the splitter has a maximum output capacity of 144 watts. Switch between 12V DC and 24 DC Output via the toggle switch. 144 watts total max output capacity to be shared among POE and DC outputs on the splitter.
• 10/100/1000 Gigabit Transfer Speeds. The Splitter Unit effectively acts as a 3 port ethernet switch and effortlessly handles network traffic between the 2 POE inputs and 1 POE output.
• Intelligent Dual POE Input sensing on POE Splitter. POE Splitter will only output power to downstream devices until it detects both POE inputs are connected from the 2 ethernet cables that are coming from the Dual Output POE Injector. This effectively prevents devices downstream from the splitter from being underpowered.

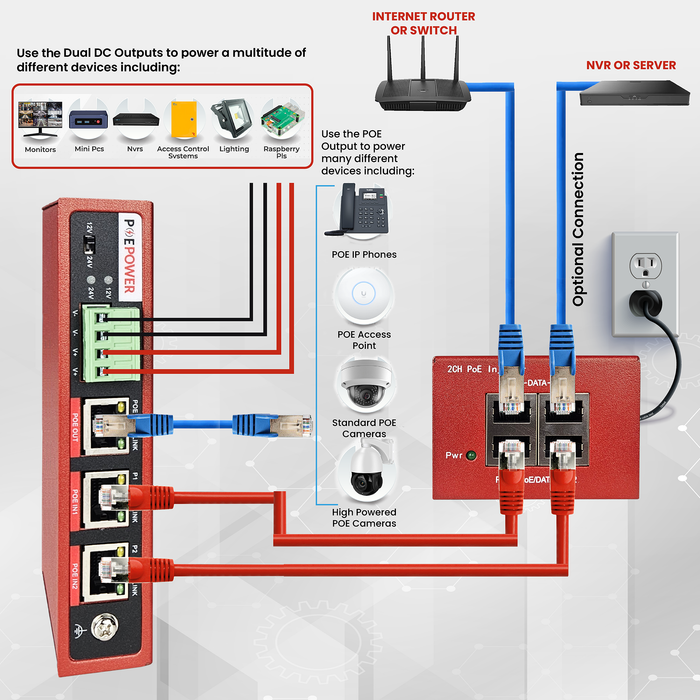

• Versatile Power Solutions: Ideal for scenarios where you need to power a POE camera along with a DC device simultaneously. Examples of DC devices include Mini PCs, Monitors, Raspberry PIs, Access Control Devices, Lighting, etc. These devices can be installed next to a POE-powered device such as an IP camera, Access Point, IP Phone, etc to enhance its functionality.
• NDAA & TAA Compliant. 3 Year Warranty.

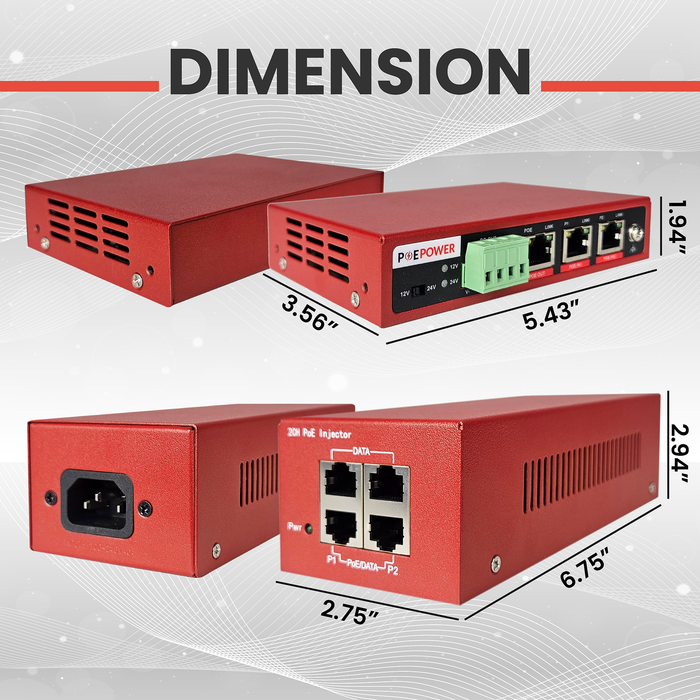

  Splitter Unit: Wall Mounts Included 1"x 3.56"x 5.31"
  Injector Unit: 2" x 2.75" x 6.75"

Downloads: Spec Sheet
