22" POE Powered Monitor, POE Output Passthrough, 12V DC Outputs, 1080p, Built In Accessory Case, Speakers

• 22" POE Powered Low Voltage Installers Dream Monitor  - A monitor that was expertly designed for low voltage professionals and packed with features for lots of customizations.
• Completely POE Powered - Runs off of POE (power over ethernet) and is powered by one single network cable (such as CAT5 or CAT6). No need to hire an expensive electrician to install a nearby receptable. Just run a standard network cable from the POE Injector/Switch to the monitor and it will be powered. Install your monitor up to 328' away from the POE power source. Perfect for CCTV, Digital Signage, Custom Projects, Retail, Medical, etc.

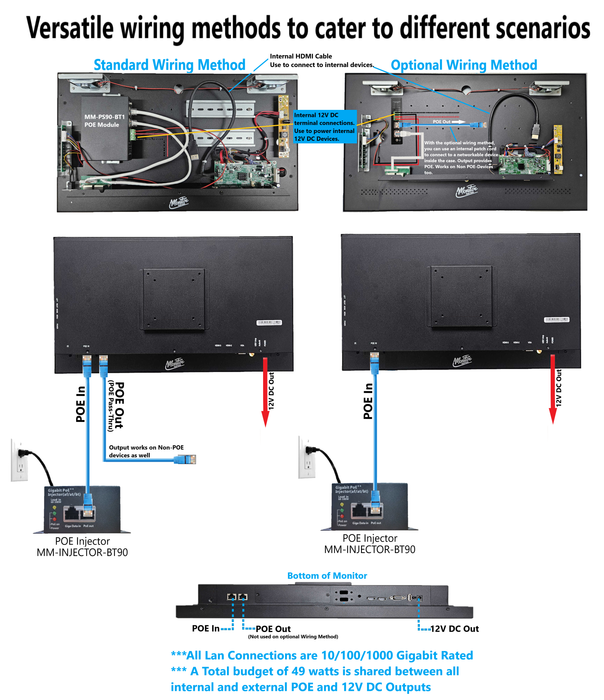

• POE Passthrough Output - Not only is the monitor powered by POE, it also passes through the excess POE power through the LAN output. Use this to power IP Cameras, Decoders, or anything else that runs off of POE. Output works on non-POE devices too. Choose to wire your POE output to to the external connection on the case or internally inside the case with a patch cable to connect to internal devices. (See pictures for details)
• 12V DC Output - As if POE output power wasn't a cool enough feature, we pushed it over the top with an additional 12V DC Output that can be used to power accessories such as Decoders, Mini PCs, Digital Signage, etc. Choose to connect to the external DC output or the internal DC output via the terminal blocks on the POE module.
• Gigabit Speeds & Ample Power Allocation - All LAN connections are rated at 10/100/1000 Gigabit speeds for fast data transfer. Also, a total of 49 watts is to be shared among the POE outputs and 12V DC Outputs.

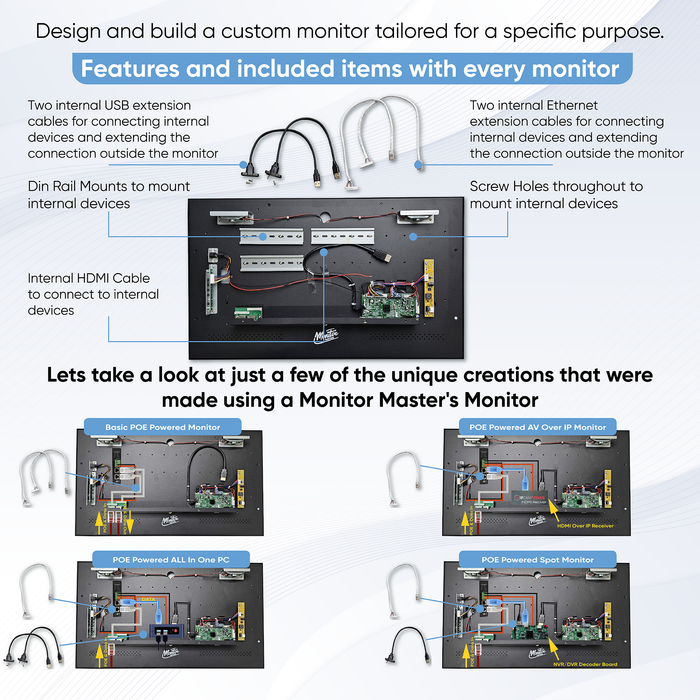

• Built-In Case to Store Accessory Devices - Internal HDMI and 12V DC output connections - Remove the back case cover to see where you can install accessories such as Decoders, Mini PCs, Etc. Removable Din Rails to allow for mounting. You will also have access to an internal HDMI connection and 12V DC output connection to connect to your devices. Mounting holes throughout provides versatile mounting options. Use the Universal Standoff Set U-STANDOFF (sold separately) to mount various devices.

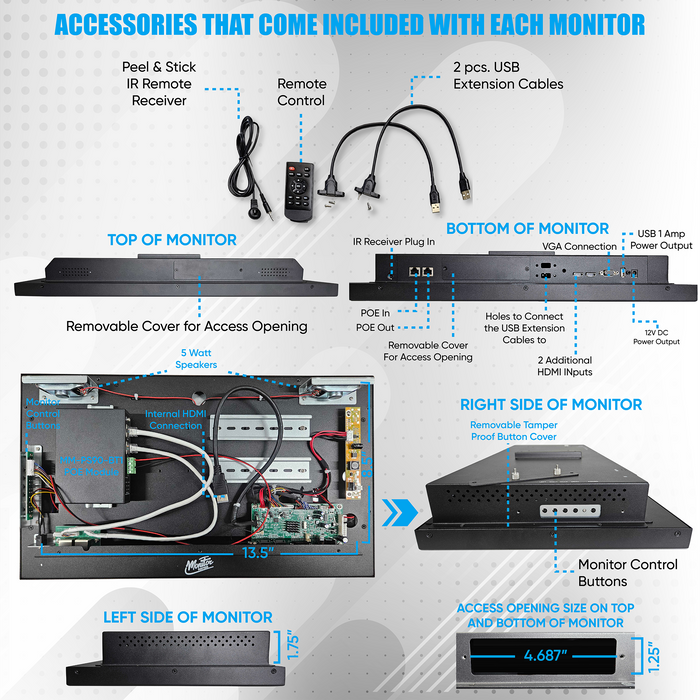

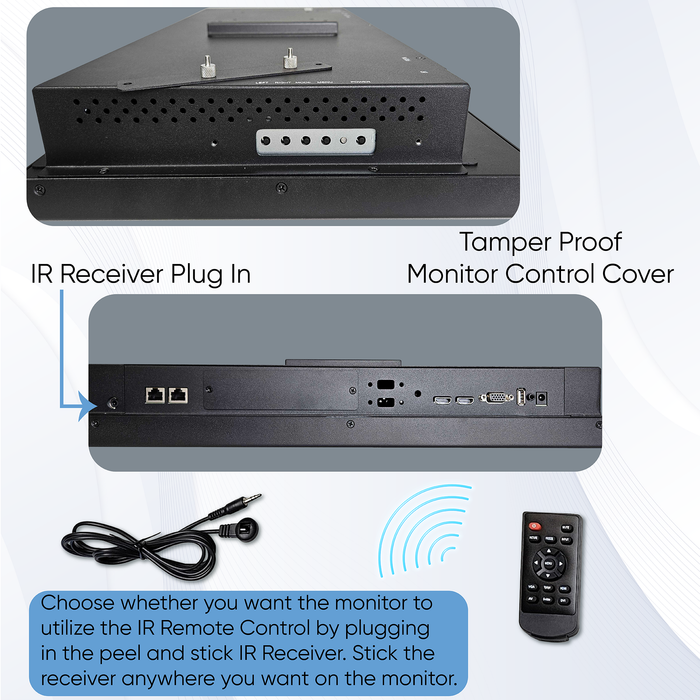

• Commercial Grade Metal Build w/ Features Designed Low Voltage Professionals - Removable tamper proof monitor control button cover. Choose whether you want the monitor to be controlled with a remote control with the included optional peel and stick IR receiver. Removable access port openings on top and bottom of back case allows easy access for cable pass through and access to accessory button panels.

• Powerful Audio: Equipped with (2) built-in 5-watt speakers for clear sound output.

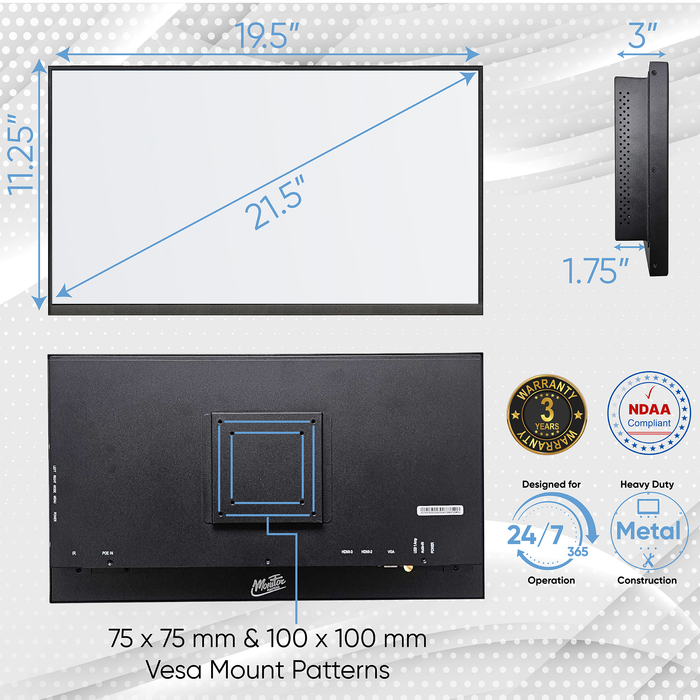

• High-Definition Display: 21.5" Full HD 1080p at 60Hz, featuring 1 internal HDMI, 2 external HDMI, 1 external VGA, 1 USB power output (1 Amp), and an audio input jack (used only with VGA).
• 3 Year Warranty - 24/7/365 Operation - These monitors are built to be used all the time day in and day out. Backed with a 3 year warranty for ease of mind.

Options and Information about these Monitors:

Spec Sheets and Individual Product Info: These monitors are built using the MM-22-1080 22" Monitor Masters Base Model and the MM-PS90-BT1 POE Module. The monitor is powered using the MM-INJECTOR-BT90 POE Injector. All spec sheets can be accessed through each products individual web listing through the links below:
MM-22-1080 Base Monitor
MM-PS90-BT1 POE Module
MM-INJECTOR-BT90

Installation of POE Module: By default, the package include us installing the POE module prior to shipping. However, you can choose to save some money by installing the POE module yourself. We encourage this, especially if you plan on installing accessories inside the case. The POE module can be moved around to cater to your specific installation. If you would like to install the module yourself, be sure to choose that option before adding to cart. To see a video of how the module is installed, please see the link below:
POE Module Installation Video

The whole package includes:
1) The Monitor
2) The POE Module (Installed or Uninstalled - Your Choice)
3) The POE Injector - If you plan on using your own injector or POE switch, you can choose to remove this option from the package to further reduce the package cost. If you do this, please note that the monitor requires a IEEE802.3bt Compliant POE Injector or Switch that can push 90 watts from its output port.
